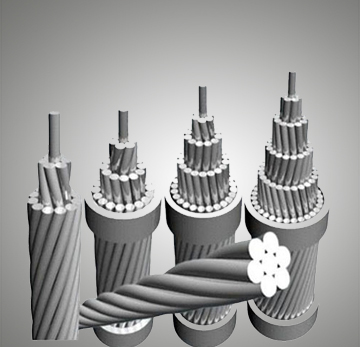

These are made out of high strength Aluminium-Magnesium-Silicon alloy. As compared to conventional ACSR, AAAC are of lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance, This has given AAAC a wide acceptance in the distribution and transmission lines.. This conductor has a minimum conductivity of 52.5% IACS. All the wires have the same nominal diameter. Most common constructions consist of 7, 19, 37 and 61 wires.
Busbars at H.V. Substations.
H.V. overhead lines
| Equivalent | Actual | Stranding & Wire Diameter | Overall | Mass | Resistance | Ultimate | Current Carrying Capacity | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Dia (mm) | (Approx) | AT 20 deg C | Breaking | |||||||
| Acsr | Area | Conductor | (Approx) | (Kg /Km) | (Ohms/Km) | Load (Kn) | 65 | 75 | 90 | |
| (Max) | Deg. C | Deg. C | Deg. C | |||||||
| Code Word | (sq mm) | No. | DIA (mm) | Amps | Amps | Amps | ||||
| Squirrel | 22 | 7 | 2 | 6 | 60.16 | 1.541 | 6.45 | 92 | 110 | 132 |
| 90 | 109 | 130 | ||||||||
| Weasel | 34 | 7 | 2.5 | 7.5 | 94 | 0.99 | 10.11 | 121 | 146 | 175 |
| 119 | 144 | 173 | ||||||||
| Rabbit | 55 | 7 | 3.15 | 9.45 | 149.2 | 0.621 | 16.03 | 160 | 194 | 234 |
| 158 | 191 | 231 | ||||||||
| Racoon | 80 | 7 | 3.81 | 11.43 | 218.26 | 0.425 | 23.41 | 202 | 246 | 297 |
| 199 | 242 | 293 | ||||||||
| Dog | 100 | 7 | 4.26 | 12.78 | 272.86 | 0.339 | 29.26 | 232 | 283 | 343 |
| 229 | 279 | 338 | ||||||||
| Panther | 232 | 19 | 3.94 | 19.7 | 636.67 | 0.1471 | 68.05 | 387 | 478 | 584 |
| 382 | 471 | 575 | ||||||||
| Kundah | 400 | 37 | 3.71 | 25.97 | 1101.63 | 0.0829 | 117.4 | 538 | 670 | 824 |
| 530 | 660 | 811 | ||||||||
| Zebra | 465 | 37 | 4 | 28 | 1280.5 | 0.0734 | 136.38 | 589 | 736 | 905 |
| 580 | 725 | 892 | ||||||||
| Moose | 570 | 61 | 3.45 | 31.05 | 1573.71 | 0.0598 | 158.66 | 663 | 833 | 1028 |
| 655 | 822 | 1015 |
